Here's some examples of parts from other bikes that fit ours...


TBS wheels fit ours, as well as needles.

the Kuryakyn flush mount gas cap... make sure it's the right hand thread & vented.

Drag specialties makes 2 sizes, one too big and a smaller one just the right size. For the smaller one it is part #DS-391671 short gas filter, 5/16" F.L. (the fuel line size on America/Speedmaster is 5/16) I purchased an extra filter element (which is replaceable inside the glass housing) that would be part # DS-391675 (replacement short filter element) Info supplied by Fishercat and Jerry

You can find several 5/16 filters here, http://www.dragspecialties.com/fatbook/1732/206


Edit: Here's another one from Reid.
]http://store.knfilters.com/search/product.aspx?Prod=81-0241
This K&N Fuel filter is perfect and allows you to get rid of the "hidden filter".
It's 5/16" barbs and easily fits between the petcock and top of carbs.
It's clear and you can easily see if you got into some junk fuel.
And only $6.38 direct from K&N.

Honda clutch cable (thanks Wojo)

Part number: 22870-447-405.

It fits the following Honda models:
CM400C '81
CM400E '80
CM400E '81
CM400T '79
CM400T '80/'81
CM400TZ-EA '79/'80

You must use a zip tie to hold the cable to the frame since it is shorter than our stock cable. If you don't it will rest on the header pipe and melt when the pipe gets hot.

Additional info from Skillet:

Honda CM400 clutch cable
Parts Unlimited Part Number - K28-5544. $12.95. Even comes with a little rubber boot at the lower end.

The OEM # is: 22870-447-010 where the posted OEM # is the same except for the last 3 digits. I just installed this one and it works.

Keys: Ignition: Yamaha - ILCO YH47 (X119), Steering lock: Volvo - SILCA NE10...


Motorcycle Key Blanks
Reviews MTNWarrior.


Key Men

Honda VTX 1300 rear brake resevoir cover for $16 and it fits perfectly. SHU number from the site is BB-55-311cover

the VMax mirrors fit. Here are some part numbers:
Yamaha: 1AA-26290-02 (right), 1AA-26280-02 (left)
Emgo: 20-86831 (right), 20-86832 (left)
Here's a link to the thread.

HD Sportster rear chrome rack ( Brent sells it , and that's my bike in the pic )

honda magna brackets fit for saddle bags

Many guys have used EZ Brackets on their bags too.

And from DK1:

Quote:

---

I noticed that the rear fender support bolt spacing on a 2003 Kawasaki Mean
Streak looked about the same as my Bonneville America. A quick measurement
confrimed that they were less than a 1/4 inch closer together. So I ordered
a set.

The bolts supplied with the brackets are way too long for our bikes. I went
to the local True Value and bought four stainless metric bolts about one
inch longer than the bolts in the rear fender support (or what came with the
backrest/luggage rack).

Here’s the Kawasaki part number: K53021-103 (about US$60 plus shipping).

---

Kuryakyn brake pedal part #8022. Fits Harley Davidson '99-'03 XL 883/1200 Customs and '03 FXDWG.

After removing the rubber on the stock brake pedal a shim of some sort (part of an aluminum can works, thanks snekeptp) must be put inside the new pedal for it to snug up.

Kuryakyn shifter pedal part #8004.

To install this pedal the shifter arm must be removed from the bike. Remove the rubber from the stock pedal and then cut off the pedal from the arm. Drill a hole into the arm for the new pedal. The hole size you drill depends on if you wish to tap the hole or not. The pedal can be threaded into the arm or put on with a nut.

From: SalMaglie

I came across this thread where roundy77 bought an H-D Deuce sissybar and put it on his bike. Anyway, just thought I'd pass this along if you don't have it in your files.

Derek
Link

Moe's Edit: Archived member jake wrote on June 06 '04

Quote:

---

Plug and Play Sissy Bar Brkt
I installed a Plug and Play sissy bar bracket this weekend. I know there was a post that mentioned this piece before but I can not locate it. The bracket that fit was the JJ, it fits the contour of the fender perfect. It also has only 2 holes in it that lined up strangely to the two theaded holes for the fender for the seat. The pin for the gunfighter seat had to be mounted on top of the bracket however because it’s bolt heads were to high and the pin wouldn’t lock. Otherwise it would have just dropped on and be done. The bar is a Krome Werks Bantam. My local bike shop fixed me up with the bracket, bar and pad for 315.00 CAD.

http://www.jbfabrication.com

---

From: vintageT6
I installed a pro 1 universal loop this weekend. I like it. If anyone is interested it did require some simple mods to get it to mount.
1. The TBA speedo cable is too large on both ends to fit through the loop. I had to file 2 slight flat spots opposite each other in the knurled end that screws into the speedometer. Once filed the speedo cable can be threaded through the loop. Don't go crazy with the file, just bring down enough to get the screw end through.
2. The hole in the fender from the rubber mount is about 1/2 inch in diameter, too big for the loop's screw. So I cut the rubber off flush with the fender and used the remaining plug as a spacer. This worked out well because the loop is now rubber mounted and has a little give to it.
3. My speedo cable was routed very tight under a few wires near the gas tank. With the speedo end disconnected I pulled it though the wires and just let it hang free when I reconnected it to the speedo. I then zip tied it to the wire bundle. This seems to let the cable to hang a lot looser and cause much less stress at the loop.

Billet cable loop

Discussion

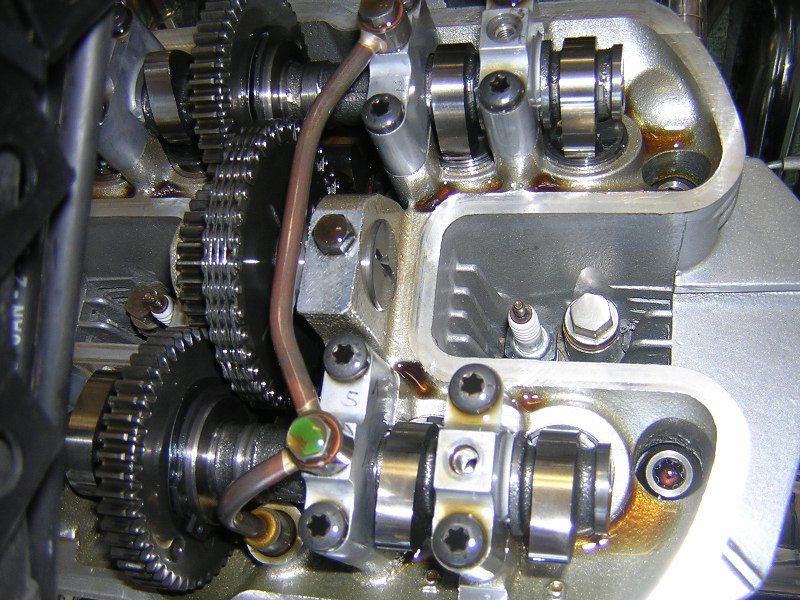

Valve Adjustments:
Yamaha Shims for the V-Max are direct replacements for Triumph shims.

SOB shims

25mm Used in Honda ('79--'83 4-cylinder CB750, 900, 1000, and 1100 series engines, and 1050 CBX 6-cylinder engines, and others), Yamaha (V-Max, and the FJ1100/1200 series), Triumph 3- and 4-cylinder liquid-cooled motorcycle engines, and older Toyota car engines.

From SalMaglie:
Like it's been said, no set interval. Mine lasted until about 30.000 miles. I replaced it with a Thunderbird rubber, and got a bit tighter fit than stock. There should be no play with the cush drive rubber. If there is, it could cause the chain to stretch. The Tbird part # is T2012211.

TRIUMPH PAINT CODES from privateer.

TRIUMPH
NAME MANUFACTURER CODE TOUCH UP PAINT PART #


ACIDIC YELLOW PPG TRIUMPH ACIDIC T3120300-FD
AEGEAN BLUE DUPONT/IVC BEC1717/L3885 T3120300-JH
ALUMINIUM DUPONT 460790101 T3120300-MH
AMBER SCHOCH 673 OME 28 T3120300-EC
ASSAM BLACK DUPONT BEC 089 T3120300-PA
ASTON GREEN DUPONT 487850101 T3120300-HH
AUBERGINE SCHOCH 673 OME 24 T3120300-TC
AZURE BLUE PPG TRIUMPH AZURE T3120300-JP
AZTEC GOLD IVC L4163 T3120300-GG
BARRACUDA BLUE DUPONT BEC 1393 T3120300-JE
BLACK (MATT) DUPONT G12 T3120300-PQ
BRITISH RACING GREEN DUPONT 461210101 T3120300-HA
BURGUNDY DUPONT BEC 1136 T3120300-TA
CANDY APPLE RED DUPONT BEC 1396 T3120300-CE
CARDINAL RED SCHOCH 673 OME 26 T3120300-CL
CARIBBEAN BLUE DUPONT BEC 1067 T3120300-JA
CASPIAN BLUE DUPONT 462110101 T3120300-JD
CASSIS RED IVC L3145 T3120300-CO
CHAMPAGNE IVC L3126 T3120300-GF
CHARCOAL GREY DUPONT BEC 918 T3120300-LA
CHERRY BLACK DUPONT BEC 650 T3120300-PB
CHERRY RED DUPONT BEC 368 T3120300-TB
CHILLI RED SCHOCH 674 OME 20 T3120300-CK
CHROMIUM IVC L3119 T3120300-MG
COBALT BLUE IVC L2263 T3120300-JJ
COPPER IVC L2398 T3120300-GD
CREAM DUPONT/PPG BEC 1658 T3120300-VA
CREAM (2K) DUPONT 485970101 T3120300-VA
DIABLO BLACK DUPONT BEC 1342 T3120300-PC
ECLIPSE BLUE IVC L3063 T3120300-JN
EMERALD GREEN PPG TRIUMPH EMERALD T3120300-HJ
FIREBALL ORANGE DUPONT BEC 1657 T3120300-EB
FLAMBOYANT SILVER IVC L2399 T3120300-ME
FOREST GREEN DUPONT RF 2510 T3120300-HI
FUSION WHITE DUPONT 486950101 T3120300-NF
GOODWOOD GREEN DUPONT 486310101 T3120300-HK
GRAPHITE IVC L3725 T3120300-LC
HERITAGE GOLD DUPONT BEC 1889 T3120300-GC
HERITAGE GREEN IVC L2341 T3120300-HD
IMPERIAL GREEN SCHOCH 673 CAL 28 T3120300-HE
IVORY DUPONT BEC 1893 T3120300-NE
JET BLACK IVC L2344 T3120300-PG
KHAKI SCHOCH 674 CAL 28 T3120300-HF
LANCASTER RED DUPONT BDC 858 T3120300-CA
LIGHTNING YELLOW IVC L2590 T3120300-FC
LUCIFER ORANGE IVC L2501 T3120300-ED
MERLOT RED DUPONT BEC 1936 T3120300-CH
MIDNIGHT BLUE DUPONT BEC 1258 T3120300-JC
NEON BLUE DUPONT RF 2511 T3120300-JO
NIGHTSHADE DUPONT BEC 1656 T3120300-KD
NUCLEAR RED DUPONT RF 2508 T3120300-CQ
OBSIDIAN BLACK IVC L2819 T3120300-PP
OPAL WHITE DUPONT 486950101 T3120300-NF
OXFORD BLUE DUPONT BEC 1259 T3120300-JB
PACIFIC BLUE DUPONT BEC 1954 T3120300-JI
PIMENTO RED DUPONT BEC 1479 T3120300-CF
PLATINUM IVC L2367 T3120300-GE
RACING GREEN SCHOCH 673 CAL 28 T3120300-HE
RACING YELLOW DUPONT BEC 1514 T3120300-FA
RACING YELLOW ALT IVC L3422 T3120300-FA
RACING YELLOW (2K) DUPONT 488120101 T3120300-FA
RADIANT RED DUPONT BEC 1088 T3120300-CB
ROULETTE GREEN IVC L2589 T3120300-HG
RUBY RED IVC L2342 T3120300-CJ
SAPPHIRE BLUE DUPONT 460660101 T3120300-JM
SCORCHED YELLOW IVC 1000792 (L4819) T3120300-FG
SCARLET RED DUPONT RF 2509 T3120300-CR
SKY BLUE PPG TRIUMPH SKY T3120300-JQ
SLATE GREY DUPONT BEC 1754 T3120300-LB
STRONTIUM YELLOW SCHOCH 674 CAL 22 T3120300-FB
SUNSET RED DUPONT BEC1661T T3120300-CP
TANGERINE DUPONT BEC 2647/F1875 T3120300-EE
TANGERINE (2K) DUPONT 485940101 T3120030-EE
TORNADO RED DUPONT BEC 2211 T3120300-CM
TORNADO RED IVC L2804 T3120300-CM
TURQUOISE SCHOCH 673 OME 29 T3120300-JK
TURQUOISE MICA SCHOCH 674 CAS 22 T3120300-JL
VIOLET DUPONT BEC 1890 T3120300-KE
VOLCANIC RED SCHOCH 674 OME 39 T3120300-CN
WARM SILVER IVC L2244 T3120300-MD



Standox Paint Code Search from Fishercat
http://www.sxcolor.info/scripts/colorinfo.dll/getpage?b=1&m=001&l=3&page=home

then...

Click on special search. Select motorcycles and hit forward arrow. Scroll down to Triumph not Triumph USA. Put and * in the code search and it will come up with all the paint codes. Click on the paint code and it will give mix formulas.

From Soren...

Here are a couple sources for some free catalogs. They are mostly for hd and other v-twin bikes, but there are tons of other stuff that we can use. The Jireh Cycles and V-Twin Manufacturing catalogs are huge...

http://www.zoom4parts.com

Jireh Cycles

V-Twin Manufacturing

Custom Chrome

J.C. Whitney


Dennis Kirk

British Only

And from RobBA05

Quote:

---

Dennis Kirk has a "fitment" feature which I love!! If you find a part for your bike you can then click "fitment" and find out what other bikes use the same part....might help to know when price shoping

---

honda part # 16075-KG8-901 is a honda mixture screw o-ring.
it is like $2 and change for 1 and can be ordered as 1 or more.

A Sylvania #6024 7" sealed beam headlight fits the bike for a LOT less than a new unit from Triumph.
See a discussion on the topic here.

From jj_ (updated by Moe)

Honda exhaust header gasket part number 18291-MM5-860B will fit fit an America/Speedmaster.

NOTE: 18291-MM5-860 supersedes 18291-254-000

Specific motorsickles:
VT750C/D 98-07
CB900C/F 81-82
CBR900RR 00-01
CBR945RR 02-03
CB1000 83
CBR1000RR 08-09
CB11000C 83, 94-95
CBR1000F 87-96
CB1100F 83
CBR1100XX 97-04
CB1300DC/F 97-05

Another list
CB750K 750 FOUR K '76 US
CB750F 750 SUPER SPORT K0 US
CB750A 750 HONDAMATIC '76 US
CB750A 750 HONDAMATIC '77 US
CB750K 750 FOUR K '77 US
CB750F 750 SUPER SPORT '77 US
CL72 SCRAMBLER 250 US
CL77 SCRAMBLER 305 US
CB72 HAWK 250 US
CB77 SUPER HAWK 305 US
CB750 FOUR K3 US
CB750K 750 FOUR K '79 US
CB900F 900 SUPER SPORT '81 US
CB750F 750 SUPER SPORT '79 US
CB900C 900 CUSTOM '80 US
FT500 ASCOT 1982 US
CB750SC NIGHTHAWK 750 '82 US
CB1000C 1000 CUSTOM US
CB1100F SUPER SPORT US
CB700SC '84 NIGHTHAWK S US
CB750C 750 CUSTOM '80 US
NX250 '88 US
CBR1000F 1000 HURRICANE '87 US
NT650 HAWK GT 1988 US
VT600C SHADOW VLX 1988 US
CBR1000F 1000 HURRICANE '90 US
CBR1000F 1000 HURRICANE '93 US
CB1000 '94 US
VT600C SHADOW VLX 1995 US
VT750C SHADOW 750 1998 US
VT600C SHADOW VLX 1999 US
VT750C SHADOW 750 2000 US
CBR900RR 2000 US
CBF2504 2004 E
CBF2504 2004 ED
CBR1000FH 1987 AR
CBR1000FH HURRICANE 1987 CM
CBR1000FH 1987 E
CBR1000FH 1987 ED
CBR1000FH 1987 F/YB
CBR1000FH 1987 FI
CBR1000FH 1987 G
CBR1000FH 1987 IT
CBR1000FH 1987 ND
CBR1000FH 1987 SD
CBR1000FH 1987 SP
CBR1000FH 1987 SW
CBR1000FH 1987 U
CBR1000FJ 1988 AR
CBR1000FJ HURRICANE 1988 CM

Not actually from another brand of bike, but still -

From Soren...

Part number for the wiring harness (only) for the Triumph Driving lights is A9930037. Great if you want to put on custom lights without messing with your bike's original connector.

Matt

Bike Bandit is now offering O.E. parts for Triumphs. The link supplied lists available models.

Link for Americas and Speedmasters can be found here.
Submitted by SalMaglie

Note: Bike Bandits part numbers are different than the Triumph numbers.

YUASA YTZ14S has 230 CCA vs standard 180 stock battery has.

Flander Pullers

Part Number 325-01011 fits the Triumph twins

Battery cross reference coutesy of Fishercat

(Stock battery is the Yuasa = YTX12-BS (180-CCA)
Dimensions: 6" x 3.4375" x 5.125)"

Yacht = CTX12-BS
Interstate = YTX12-BS
Westco = 12V12-B (Brent sells Westco)
Delco = GTX12-BS
PowerStar = PM12-BS
Energizer = 02078210
Champion = 12BS
NAPA = 740-1866
Walmart = ES12BS
Powersonic = PTX-12BS
Sears = 44016



Submitted by Mikemm03:
With props to Fishercat and Dinqua I want to recommend
the Napa 740-1866, Napa part # 12BS, 209 CCA $54.95.
The stock Yuasa is 180 CCA.
The Yuasa YTZ14S that Dinqua referenced has 230CCA. This unit is very pricey. Two different quotes in Knoxville,Tn. List price $ 159.99. First quote $ 125.99,second quote $140.99.
Both locations stated they would need to order,ya think!
Apparently this is the new super duper whatchamacallit.
My two cents.
Mikemm03

Replacement for OEM tach:

Drag Specialties Part# DS244138.

Thanks to Jim (Ham42) for this.

From Piper/Bengt

CONFIRMED!

Honda CB1100F, CBX1000 1980 and CBR 1000F 96-99 do use the same sprockets as we. These are for a 530 chain.

Maybe this can be posted in the tech vault.

I just wanted to pass on that you can replace the stock mirrors with Suzuki volusia/boulevard c50 mirrors.

you have to use your stock mirror posts but the zuke mirrors will screw right on to the triumph posts.

much better then stock.

Submitted by Tony_From_Boston

Gregory Hope (EnglishYankee):

Quote:

---

Okay I finally dug out my invoice and this is what it says:

18-8977 Float Needle: Keihin PWK carb $19.99 ea (7/30/2008 at Libby's in CT)

Looks like PWK and CVK carbs use the same needles. I compared them when I changed them out and they look exactly the same, haven't had any fuel leaking out so they work just fine and are less than half what other places want for the CVK needles.

---

AUGUST 26, 2009 Notes:
The OldBikeBarn sells these and list more cross reference part numbers. web page
* Category: Carburetor
* Manufacturer: K&L
* Manufacturer PN: 18-8977
* Country of Origin: Japan
* OEM Number: 16030-1057, 13370-43D30, K1603-01057, T1241033, 4MX-14392-00-00
* Shipping Weight: .01 lb
* Stock Condition: New

From member Grzegorz

Headstock bearings replacement tapered ones

-32005X/26 Special 26mm Bore Narrow Section Steering Head Set Taper Roller Bearing 26x47x15mm

-32006JR Narrow Section Steering Head Set Taper Roller Bearing 30x55x17mm


Rear wheel bearings

1 x 63052RS1 Sealed Ball Brg 25x62x17mm
1 x 62042RSH Sealed Ball Brg 20x47x14mm
1 x 63042RS1C3 Sealed Ball Brg 20x52x15mm

every manufacturer has same symbols

Swing Arm bearings
17x35x10 6003LU need 2 of them
and
HK2526 Drawn Cup Type Needle Roller Bearing With Two Open Ends 25x32x26mm


From member Night_Rider..

'05 America front wheel bearings and seal #'s

Rotor side seal; National # 40566S
Opposite side seal; DMR # 35477-DL
Wheel bearings; NSK # 6005DU

Several members have confirmed that the thuxton carb needles (NBZT) are Triumph part # T1245031

Via the following threads:

http://www.bonnevilleamerica.com/forums/...ge=0#Post411028

http://www.bonnevilleamerica.com/forums/...0&fpart=all

Honda Shadow 1100s. Kuryakyn Model number 6340 (ISO Grips in black)

Soren says

Thanks to Grzegorz:

Quote:

---

rotor bolts
they are for front and rear for america or speedmaster or thunderbird 900

---

probolt-usa.com
Part No:
LSSDISCTRIRE

As of 7/13/2011:
Item Price
$6.04 Each

As of November 2, 2012:
Item Price
$6.59 Each

Starter relay: Autozone carries the 5 pin relay, Duralast part # 19861 (Thanks to roadworthy)

Headlight relay: O'Reilly Auto Parts: BWD brand #R3177 relay is a direct replacement. (Thanks to oldroadie)

McMaster-Carr sells the new and improved cam cap bolts (as opposed to the pan head torx on older models). Pack of 25 for $6.60. Shipping for two packs to Central Florida was $5.45.

The image immediately below is for illustration purposes only to show the old style bolts.





McMaster-Carr:
Price per pack of 25 (twenty five bolts): $6.60
Part number: 91310A342
Description: Class 10.9 Black Fnsh STL Hex Head Cap Screw M6 Size, 40mm Length, 1mm Pitch, Fully Threaded, packs of 25


Website


Compare at the Bike Bandit:
Price per bolt: $1.80
Part number: 2126219
Description: SCREW,PAN/HD,TX,M6*1*40,SLV
