 HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2013
Posts: 231
Adjunct
|
OP
Adjunct
Joined: Mar 2013
Posts: 231 |
I own a 2007 Triumph Speedmaster. I have a dd gauge HLY-3016. It comes with very clear directions and a wiring diagram. My problem is understanding the wiring diagram for my Speedmaster. The wiring diagram for the dd gauge tell's me what each wire does for the gauge. I am not a mechanic nor do I know anything about wiring. Learning as i go. Thanks for any help.
Opportunities multiply as they are seized. - Sun Tzu
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2007
Posts: 5,616
Check Pants
|
|
Check Pants
Joined: Mar 2007
Posts: 5,616 |
What wiring diagram are you using for your speedy? Haynes? OEM manual?
SOLD: 07 Black BA, 39mm FCRs, TPUSA stage 1 head, TPUSA 813 cams, TPUSA 10.8:1 pistons, TTP #3 igniter, Specialty Spares Long Cannons, Tsukayu Hard Bags. 82HP/55tq
NEW: 19 Goldwing Tour DCT
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2013
Posts: 231
Adjunct
|
|
OP
Adjunct
Joined: Mar 2013
Posts: 231 |
Opportunities multiply as they are seized. - Sun Tzu
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2013
Posts: 231
Adjunct
|
|
OP
Adjunct
Joined: Mar 2013
Posts: 231 |

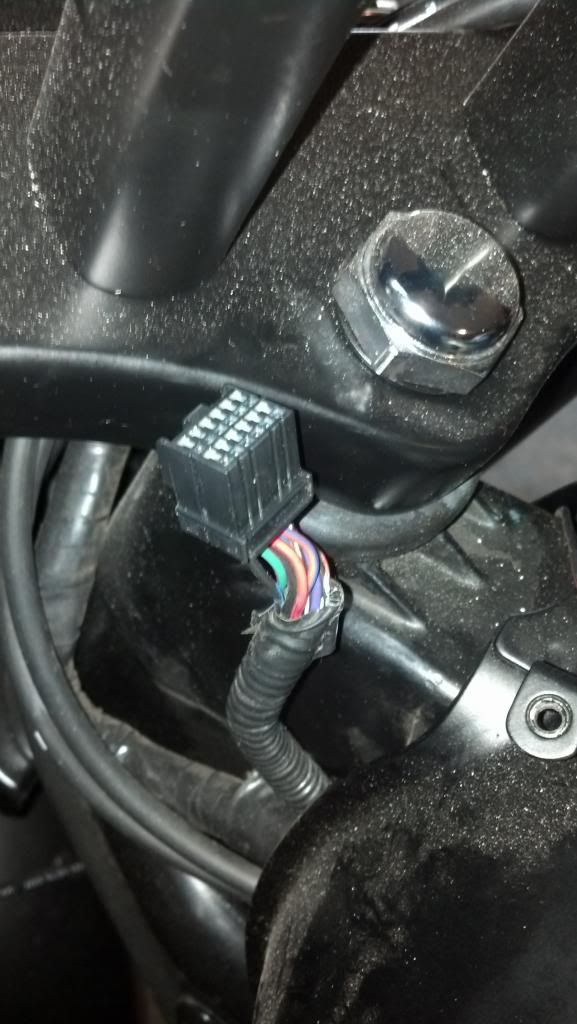

Here is the wiring for the Dakota Digital Gauge. [image]  [/image] To start I'm assuming all the wires I need are bundled together already. On The DD Gauge Install papers. "Power Connect the Red wire from the main harness to accessory from ignition switch." I don't know where this is on my wiring harness coming up in front of the tank.   This pic show the wires other end connected to the Blinker. [image]  [/image]
Opportunities multiply as they are seized. - Sun Tzu
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2007
Posts: 5,616
Check Pants
|
|
Check Pants
Joined: Mar 2007
Posts: 5,616 |
Test the red/blue (#2 in the clock connector) or purple (#3 in the clock connector) and see if one of those two will work. I think red/blue should do it unless it needs more current than a light bulb.
SOLD: 07 Black BA, 39mm FCRs, TPUSA stage 1 head, TPUSA 813 cams, TPUSA 10.8:1 pistons, TTP #3 igniter, Specialty Spares Long Cannons, Tsukayu Hard Bags. 82HP/55tq
NEW: 19 Goldwing Tour DCT
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2008
Posts: 1,586 Likes: 1
Learned Hand
|
|
Learned Hand
Joined: Mar 2008
Posts: 1,586 Likes: 1 |
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Mar 2013
Posts: 231
Adjunct
|
|
OP
Adjunct
Joined: Mar 2013
Posts: 231 |
Quote:
Test the red/blue (#2 in the clock connector) or purple (#3 in the clock connector) and see if one of those two will work. I think red/blue should do it unless it needs more current than a light bulb.
Thanks. I chickened out though. My bike is at a local bike shop getting wired up.
I can do basic wiring. I just didn't want to burn out my new gauge.
Opportunities multiply as they are seized. - Sun Tzu
|
|
|
Re: HELP!! Trying to wire a Dakota Digital Gauge
|
Joined: Jan 2015
Posts: 5
Complete Newb
|
|
Complete Newb
Joined: Jan 2015
Posts: 5 |
Edwin,
Do you have any suggestions for wiring up the HLY-3016? My bike is an 09 EFI.
Wiring Colour Code for Gauge HLY-3016:
Pin # on Gauge - Function - Bike wire
White - Output speed signal - ?
White/Purple - Tachometer warning output - For later install
Black - Ground for gauge - Connect to existing.
White/Green - Neutral indicator - 2 wires. 1 to console light harness. Marrette black wires.
Pink - Engine Indicator - Wire off the existing speedometer.
Green and Orange- Right/Left turn indicator - 2 wires. 1 to console light harness. Marrette black wires.
Yellow - Tachometer signal input -
Gray - Speed signal input - For inductive pickup’s, connect one terminal from the pickup to ground and connect the other terminal to the gray wire on the gauge.
White/Red - Speed sensor power out - ?
Red - 12 volt power with key on - Connect to existing 12v source.
Brown - Low oil warning indicator - 2 wires. 1 to console light harness. Marrette black wires
Blue - Night diming - Not using
Purple - High beam indicator - 2 wires. 1 to console light harness. Marrette black wires
White/Blue - Optional external switch input - Not using
White/Black - Security system indicator - Not using
