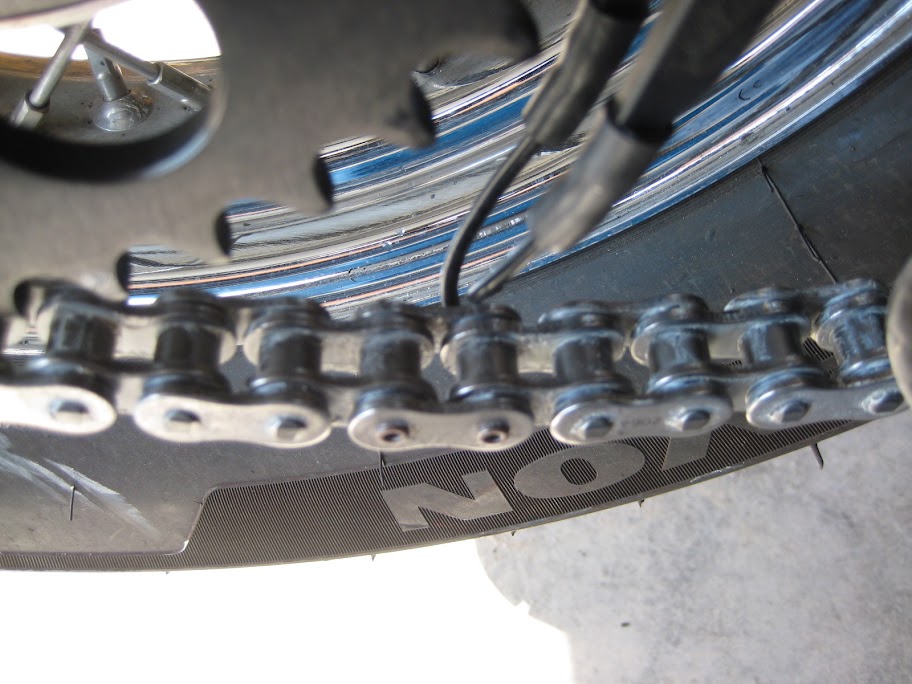

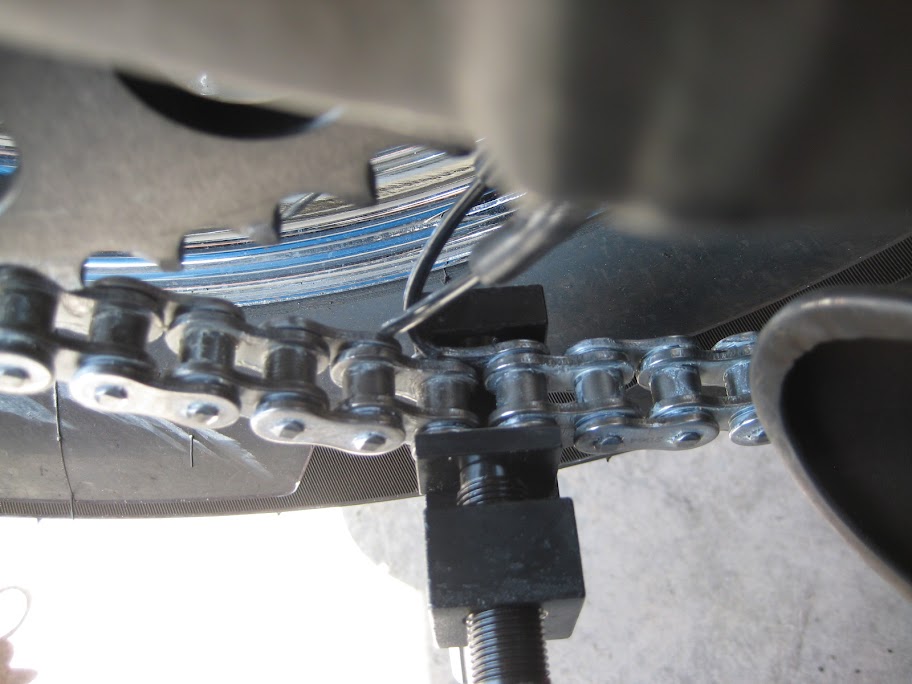

Okay, I'm almost done. I just compressed the rivet link and I'm wondering how I tell if it's compressed enough. How hard do I reef on the rivet tool? I took some pictures here, but here are the two applicable photos (ignore the Scottoiler tubes):
|
|
|
Re: Question: Rivet Chain Link
|
Joined: May 2008
Posts: 247
Adjunct
|
|
Adjunct
Joined: May 2008
Posts: 247 |
It looks good. You don't want the chain to bind or flatten out the o-rings too much. Give it a quick messure and if your within a couple of thousands of the original links you should be there.
Chip Sciarra "07" America, N.C.Switch Blade windshield, Moto Lights, Tri. Off Road pipes
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Jan 2005
Posts: 18,825
"Lighten up, Francis."
|
|
OP
"Lighten up, Francis."
Joined: Jan 2005
Posts: 18,825 |

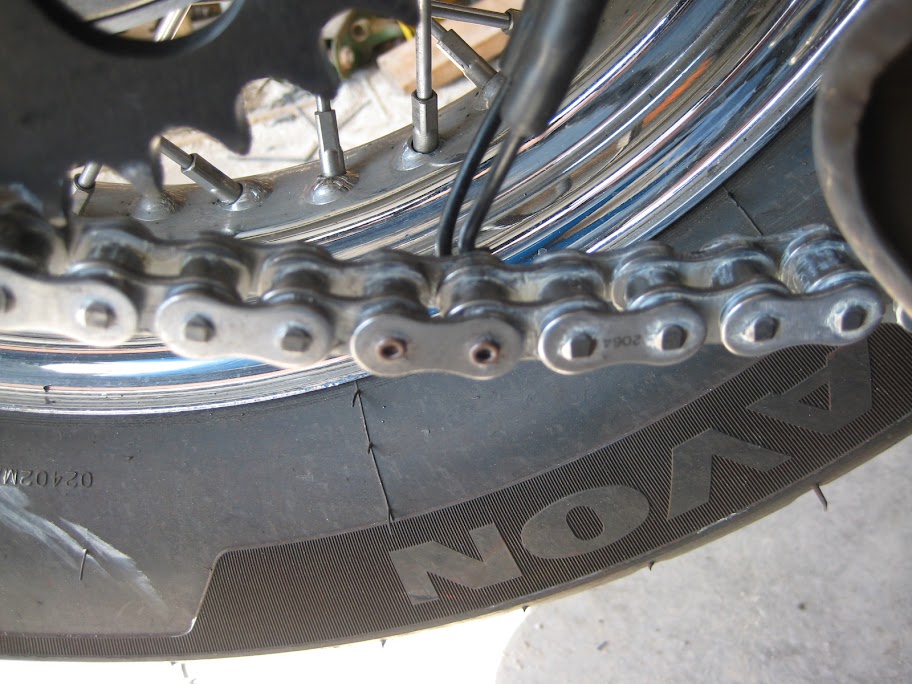

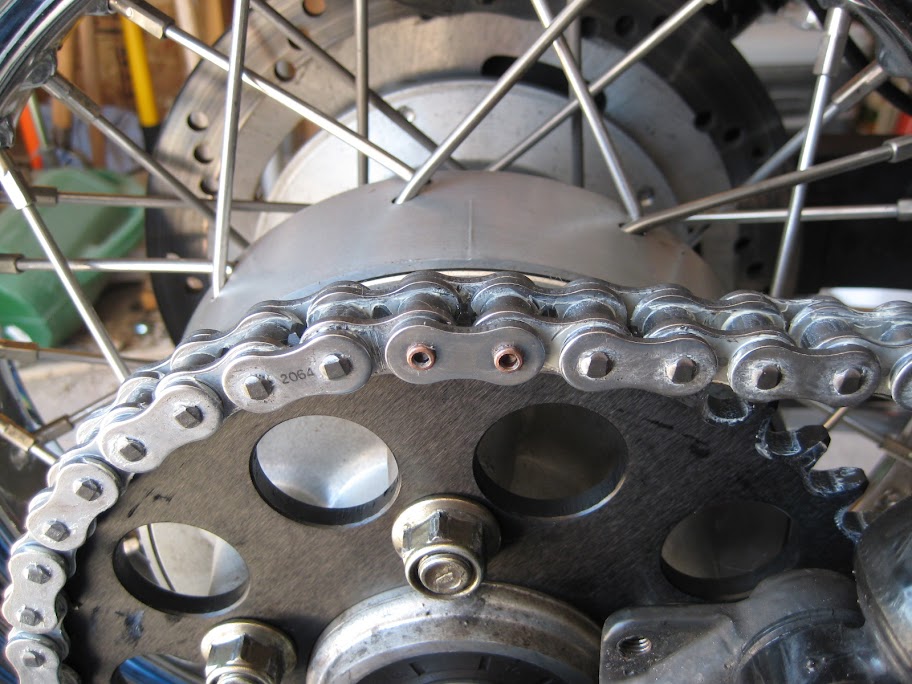

Update: after calling FastEddy and re-reading the instructions, I found out that I need to use the flare head and flare the ends out. Here's what that looks like, assuming I did it enough:
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Feb 2007
Posts: 23,226 Likes: 62
Fe Butt
|
Fe Butt
Joined: Feb 2007
Posts: 23,226 Likes: 62 |
I used a clip style link and I no longer advise the use of one on an X ring or O ring chain. In order to compress the link enough to get the clip on it forced out the O ring and even then I had a tough time getting the clip to seat in the little groove. I am going to buy a rivet tool and change the clip link out for the rivet type. I would still use the clip on the std chains and have been riding with the clip link on my X ring for now but I want the seal to do it's job and it isn't the way it is now.
I learned all I need to know about life by killing smart people and eating their brains.
Eat right ,Exercise ,Stay fit, Die Anyway!
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Sep 2006
Posts: 1,457
Learned Hand
|
|
Learned Hand
Joined: Sep 2006
Posts: 1,457 |
All I see are little boxes with red Xs. Quote:
It looks good. You don't want the chain to bind or flatten out the o-rings too much.
The ones I've done come with spacers to keep that from happening.
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Sep 2007
Posts: 1,668
Learned Hand
|
|
Learned Hand
Joined: Sep 2007
Posts: 1,668 |
I used the spacers that came with the chain and just tightened it up till the tool snapped off and voila no more guessing!
Howbeit when He, the Spirit of truth, is come; He will guide you in all truth:
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Jan 2005
Posts: 5,172
Saddle Sore
|
|
Saddle Sore
Joined: Jan 2005
Posts: 5,172 |
I'm getting ready to change my chain again also. This will be my 3rd total and 2nd EK chain. I don't know about other brands, but the EK's come with spacers for installation. Crank on the rivet 'shrooming tool till just before it breaks and you should be good to go...
More flags
More fun!
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Jan 2005
Posts: 18,825
"Lighten up, Francis."
|
|
OP
"Lighten up, Francis."
Joined: Jan 2005
Posts: 18,825 |
Well, I rode it to my monthly poker game tonight and so far, so good.
Oh, and Ian, this thread has nothing to do with clip-on chain links. But thanks for your input nonetheless.
|
|
|
Re: Question: Rivet Chain Link
|
Joined: Feb 2007
Posts: 23,226 Likes: 62
Fe Butt
|
|
Fe Butt
Joined: Feb 2007
Posts: 23,226 Likes: 62 |
I know John just thought the info fit here and would be useful to those thinking of that route.
