 Light Bars Pics Please
|
Joined: Jul 2007
Posts: 234
Adjunct
|
OP
Adjunct
Joined: Jul 2007
Posts: 234 |
I know there have been various posts on lightbars. I'm intereted in individuals posting any pics they may have of different model light bars mounted on the bikes. There are plenty of OEM pics so that one is not really required. Not really interested in the lights themselves as much as I am in the bar. Along with the pics, can you post the make of the lightbar and any difficulties/modifications for mounting.
The OEM light bar has the lights too far apart for my liking. There are a number of bars applicable to "Metric cruisers" that look good but not sure what mods would be required to mount on TA.
Thanks to all in advance.
Adventure before Dementia...
|
|
|
Re: Light Bars Pics Please
|
Joined: Jun 2006
Posts: 312
Adjunct
|
|
Adjunct
Joined: Jun 2006
Posts: 312 |
Check out Sandman's post in the tech section on how too's
Beautiful Black, T Bike pipes cross pipe blocked 18 tooth.
|
|
|
Re: Light Bars Pics Please
|
Joined: Jul 2007
Posts: 234
Adjunct
|
|
OP
Adjunct
Joined: Jul 2007
Posts: 234 |
Sandmans post shows the OEM and JC Whitney bar. Any one else have other options like the "Kuryakyn Constellation Driving Light Bar".
Adventure before Dementia...
|
|
|
Re: Light Bars Pics Please
|
Joined: Jul 2008
Posts: 1,440
Learned Hand
|
|
Learned Hand
Joined: Jul 2008
Posts: 1,440 |
Quote:
The OEM light bar has the lights too far apart for my liking.
I'm planning a project now to add additional lights without using the factory bar. I think I can fit a pair of high/low 4" sealed beams side by side within the width of the forks, just below the headlamp. J&P sells 4" housings that should work for this, and I think a fairly simple aluminum bracket screwed to the bottom of the upper triple tree is all that's needed. Two projects are planned ahead of this one to prep the bike for winter riding, then I'm on to the lighting mods.
Jack
'08 America Blue/White; Custom Headlamps, Custom Lowers, Clearview 20", Bafflectomy
|
|
|
Re: Light Bars Pics Please
|
Joined: Jan 2008
Posts: 1,172 Likes: 15
Learned Hand
|
|
Learned Hand
Joined: Jan 2008
Posts: 1,172 Likes: 15 |

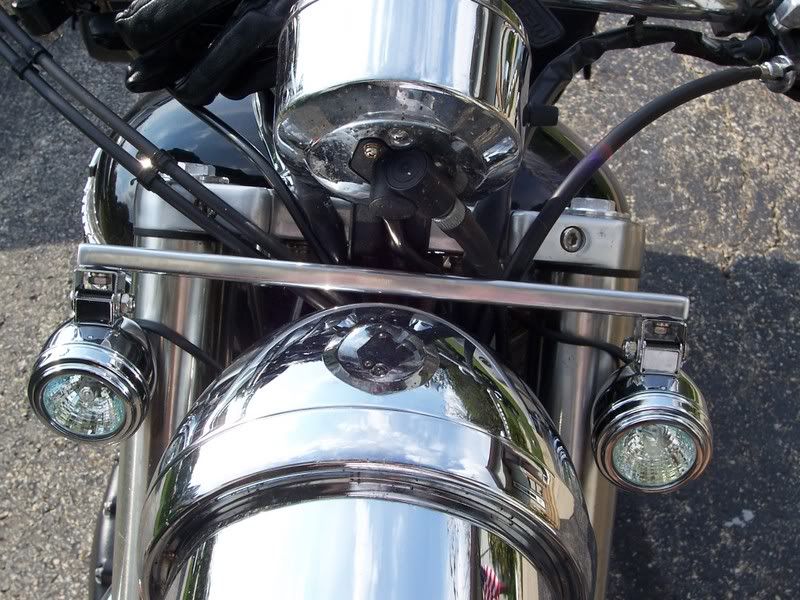

this is a light bar that I made, it is machined from a bar of aluminum. doubles as a wiring and cable retainer (gets rid of the bent wire things under the speedo) bolts up to the existing tapped holes in the upper triple clamp.  here is a shot of just the light bar
05 speedmaster - 1100cc, 11:1 racing pistons, Carillo rods, thunderbike cams, ported and polished head, 2mm over intake and exhaust valves, Barnett kevlar clutch, scepter pipes, oversize manifolds, 45mm HSR's, TTP stage 4 firestarter
|
|
|
Re: Light Bars Pics Please
|
Joined: Jan 2005
Posts: 18,825
"Lighten up, Francis."
|
|
"Lighten up, Francis."
Joined: Jan 2005
Posts: 18,825 |

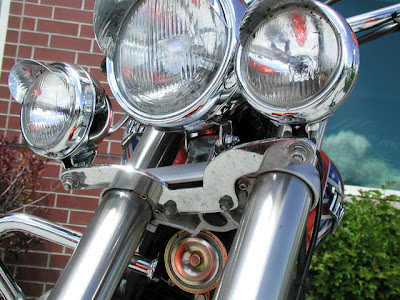

Here's the one I made out of flat steel to replace the triumph one (same lights).  There is at least one other like this, but it was machined out of aluminum and covers the bottom of the yoke better. It also is attached with the fork shroud bolts, not the lightbar bolts like mine.
|
|
|
Re: Light Bars Pics Please
|
Joined: Jan 2005
Posts: 12,164 Likes: 1
Should be Riding
|
|
Should be Riding
Joined: Jan 2005
Posts: 12,164 Likes: 1 |
For a while I had this set up....   Soren
|
|
|
Re: Light Bars Pics Please
|
Joined: Mar 2007
Posts: 5,616
Check Pants
|
|
Check Pants
Joined: Mar 2007
Posts: 5,616 |
Sandmans set up with Adjure lights
SOLD: 07 Black BA, 39mm FCRs, TPUSA stage 1 head, TPUSA 813 cams, TPUSA 10.8:1 pistons, TTP #3 igniter, Specialty Spares Long Cannons, Tsukayu Hard Bags. 82HP/55tq
NEW: 19 Goldwing Tour DCT
|
|
|
Re: Light Bars Pics Please
|
Joined: Feb 2007
Posts: 23,198 Likes: 56
Fe Butt
|
Fe Butt
Joined: Feb 2007
Posts: 23,198 Likes: 56 |
Quote:
this is a light bar that I made, it is machined from a bar of aluminum. doubles as a wiring and cable retainer (gets rid of the bent wire things under the speedo) bolts up to the existing tapped holes in the upper triple clamp.
here is a shot of just the light bar
That is a cool idea and a different approach.
Here is what I did with the OEM light bar on Wendys bike.

I learned all I need to know about life by killing smart people and eating their brains.
Eat right ,Exercise ,Stay fit, Die Anyway!
|
|
|
Re: Light Bars Pics Please
|
Joined: May 2007
Posts: 81
Member
|
|
Member
Joined: May 2007
Posts: 81 |
Quote:
Sandmans set up with Adjure lights
LOOKS GREAT! WHO's LIGHTBAR IS THAT TO START WITH?
|
|
|
Re: Light Bars Pics Please
|
Joined: Dec 2006
Posts: 19
Complete Newb
|
|
Complete Newb
Joined: Dec 2006
Posts: 19 |
Lazy Rider, This is a projeject that i'm in the middle of completing at the moment These lights are between the forks and can hardly be seen from the side
Triumph Speedmaster 2006, Black, Epco pipes, 988 repco, Keihin Carb, Crank Upgrade, TBS front wheel and America Rear, Ness Retro Controls
|
|
|
Re: Light Bars Pics Please
|
Joined: Feb 2008
Posts: 2,671 Likes: 15
Loquacious
|
|
Loquacious
Joined: Feb 2008
Posts: 2,671 Likes: 15 |
Sandman's is just right. I want one; the OEM Triumph unit spaces out the passing lamps unnecessarily wide, IMO.
|
|
|
Re: Light Bars Pics Please
|
Joined: Jan 2008
Posts: 1,172 Likes: 15
Learned Hand
|
|
Learned Hand
Joined: Jan 2008
Posts: 1,172 Likes: 15 |
I have this bar for the indicator light mount that could be used any sort of smaller light. mounts under the lower triple and the wires run thru it.  on the bike
05 speedmaster - 1100cc, 11:1 racing pistons, Carillo rods, thunderbike cams, ported and polished head, 2mm over intake and exhaust valves, Barnett kevlar clutch, scepter pipes, oversize manifolds, 45mm HSR's, TTP stage 4 firestarter
|
|
|
Re: Light Bars Pics Please
|
Joined: Mar 2005
Posts: 89
Member
|
|
Member
Joined: Mar 2005
Posts: 89 |
I used the handlebar from a kids BMX bicycle. I used flexible stainless steel hoses (the same type used in plumbing to connect sinks, etc.)to run my wires through...Got great wiring info from Sandman's site.
I'll try posting some pics..I have to get a leather tool pouch to better conceal the wiring where it all intersects below the headlight...
|
|
|
Re: Light Bars Pics Please
|
Joined: May 2007
Posts: 6,432 Likes: 1
Worn Saddle
|
|
Worn Saddle
Joined: May 2007
Posts: 6,432 Likes: 1 |

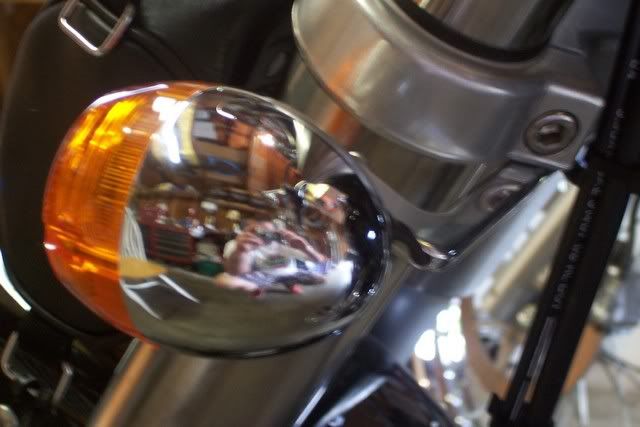

Standard JC Whitney fare with added turn signal hangers:
