Pictures for the Big Bore Installation Site
Not really in order, just for shits and grins
Here's my Shim Calculator program. Guaranteed Virus Free.
Pat's Carb Site
Pat's Triumph Home Page
The Disassembly section

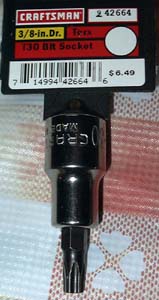

The Sears Torx 30 socket you should have to prevent damage to the torx bolts

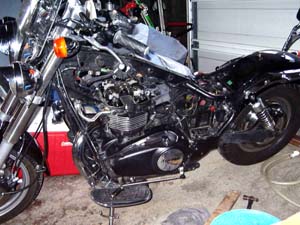

The early stages after seat, gas tank and carbs are removed.

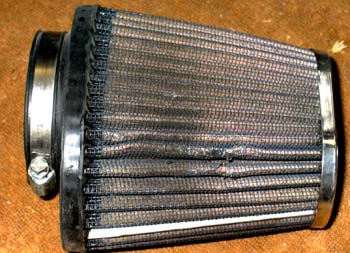

Damaged Air Filter - caused by Freak Bracket

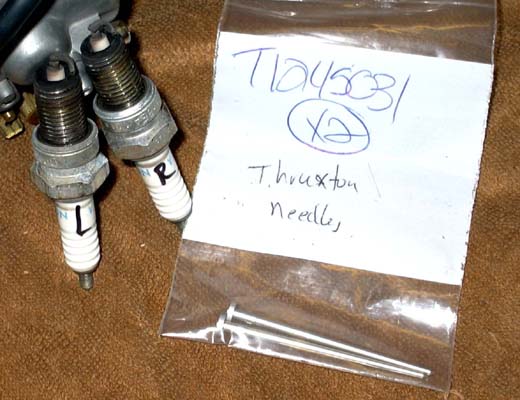

Spark plugs after removal and the Thruxton needles that will go in after the Big Bore

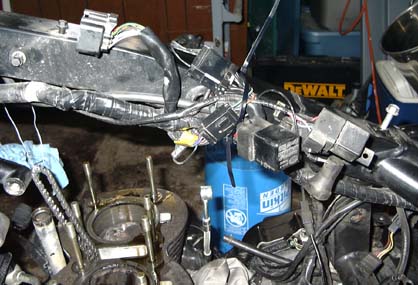

Tie up the wiring harness to give more room for cylinder and head removal. This should be done a lot sooner than I did. Much more room after this.

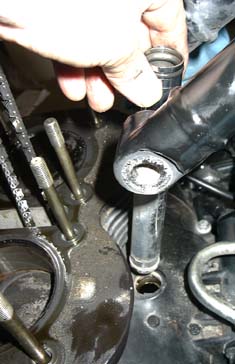

Remove breather tube

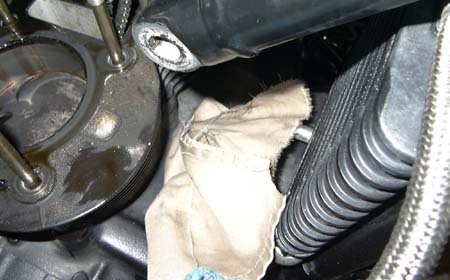

Rags stuffed into breather tube hole

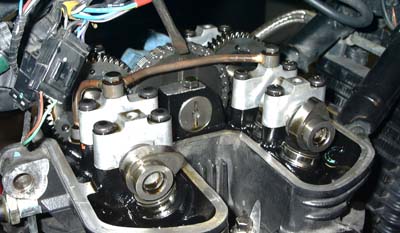

Cam gears and proper alignment

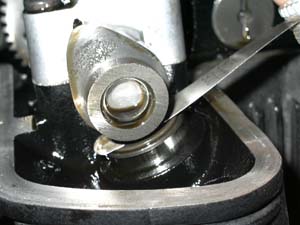

Checking valve clearance with feeler gauge

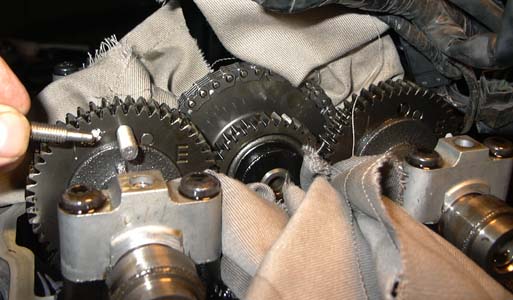

Inserting backlash retainers (Tools Courtesy of BUDWEISER on BA Board)
Rags stuffed under the cam chain to prevent crap falling in while removing small parts.

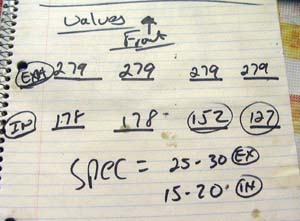

My valve worksheet - notice only 2 are off, can you figure what size would be needed?

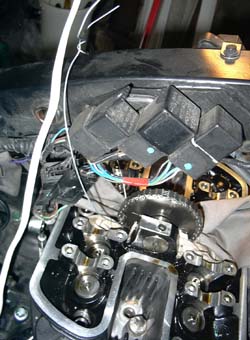

Cam chain secured so it won't fall inside motor

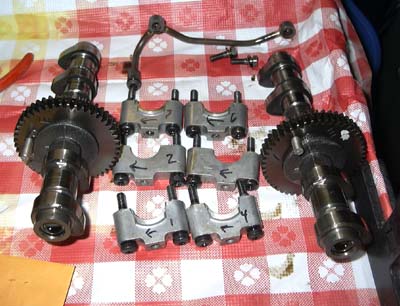

Camshaft caps and oil lines

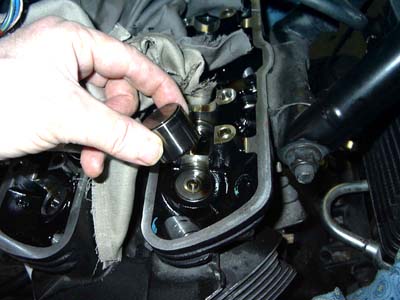

Removing the valve shim buckets

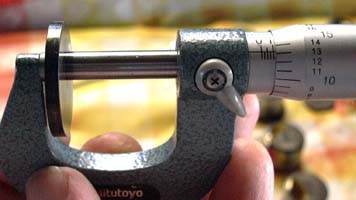

Using micrometer to measure shim. This one was 0.026 to tight, so math is in order

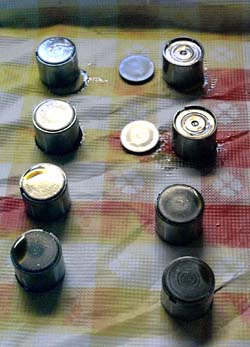

Valve shims and their buckets - two out need replacing. They are laid out in the same formation they will go back in

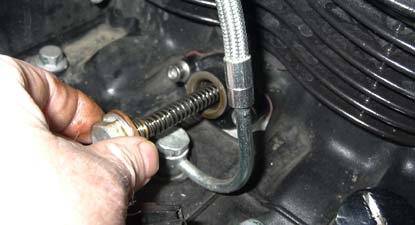

Cam chain tensioner removal

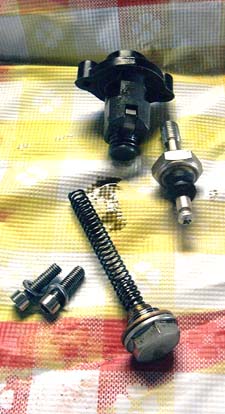

Cam chain tensioner mechanism and the low oil switch

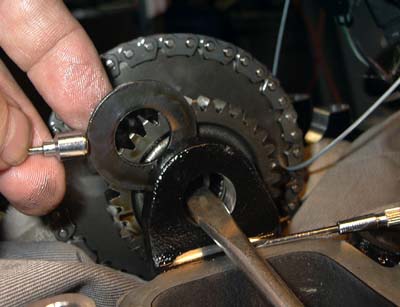

Holding the thrust washer with magnet during removal to prevent dropping them into the motor

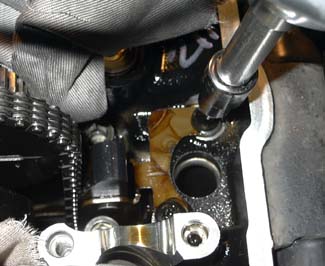

Removing the bolts that hold in the front cam chain guide blade

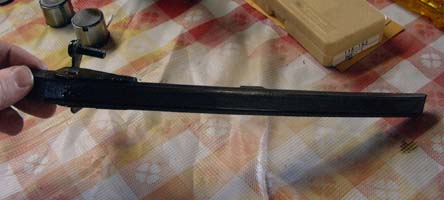

Front Cam chain guide blade removed

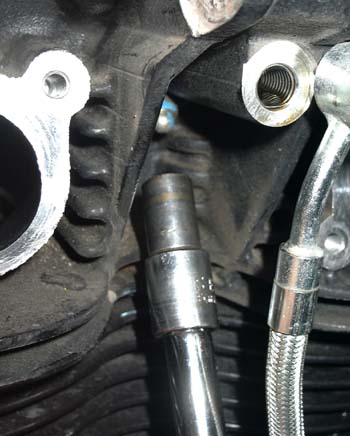

The rear nut you need to remove to remove the rear cam chain tension blade guide

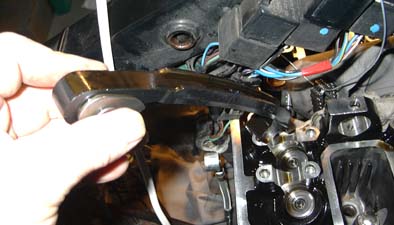

Rear cam chain tensioner guide blade removed

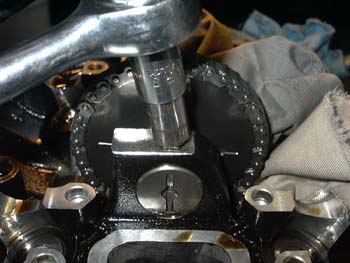

Loosening the camshaft drive gear retaining bolt

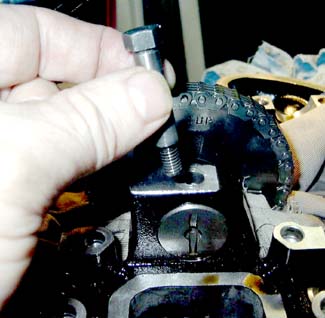

Camshaft drive gear retaining bolt out
Use a magnet to hold the thrust washers or you be fucked!

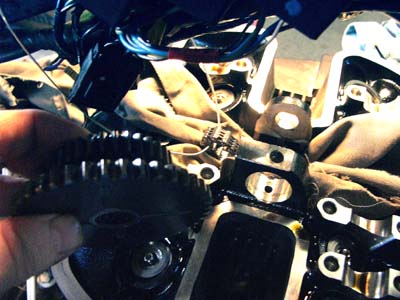

Camshaft drive gear taken out

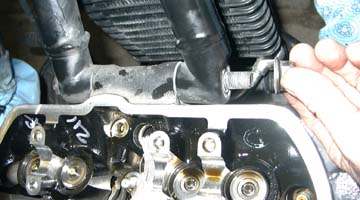

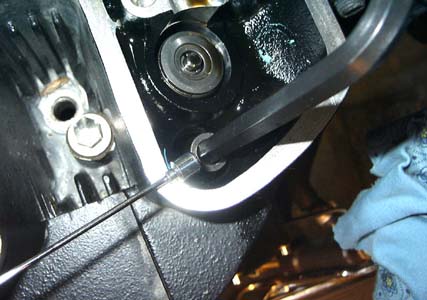

Front cylinder head nut and bolt removal

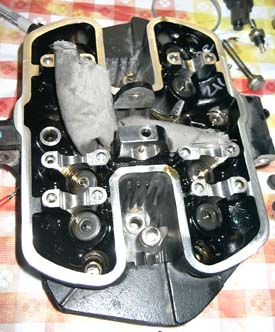

Cylinder head removed and on table
Lining up pistons and securing for safe removal

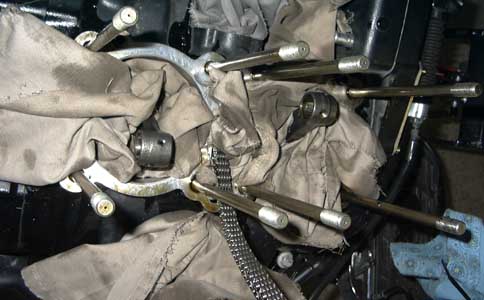

Rags stuffed into the opening in the motor, after piston removal, to prevent crap from falling in

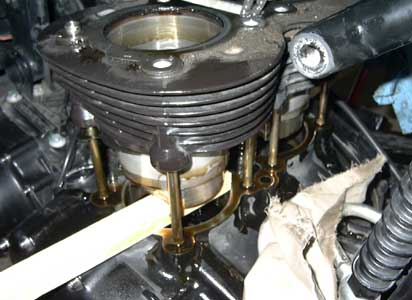

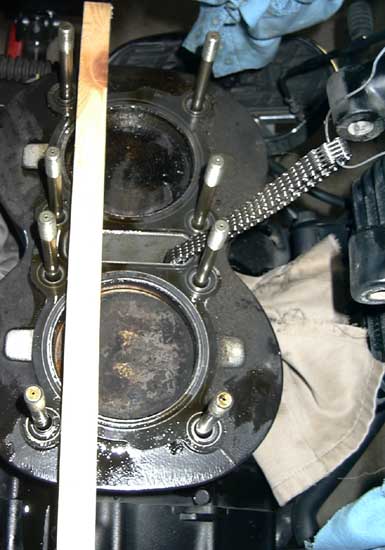

Wooden slats to prevent damage when removing pistons

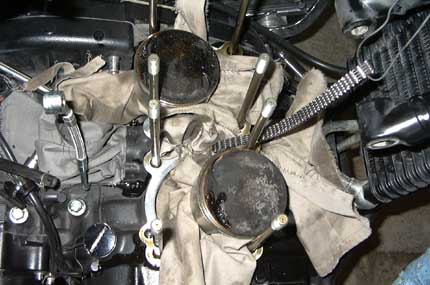

Rags stuffed under pistons before piston removal
Jugs out and the two locating dowels

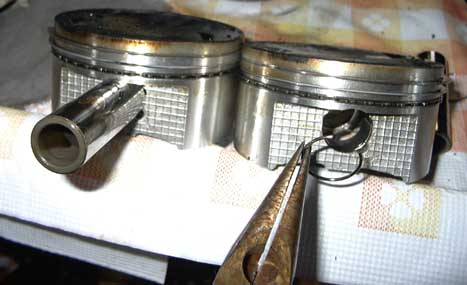

Piston Circlips and grudgeon pins

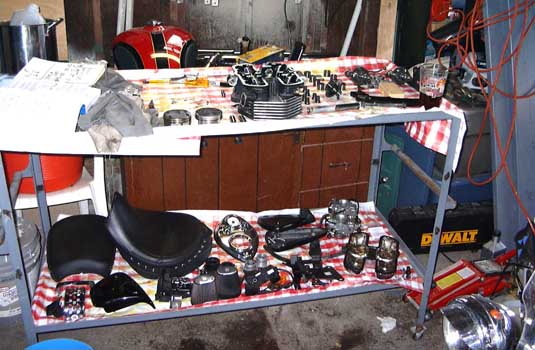

Everything all set on bench
The Reassembly Part

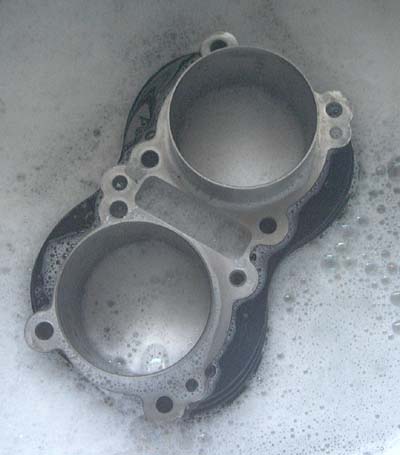

Cylinders all back from Wiseco Piston Service and in the wash basin to remove all oil and bore slime

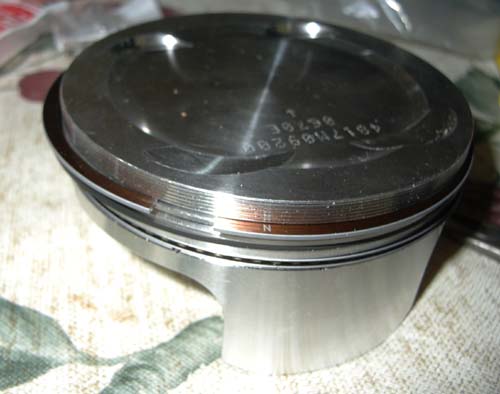

Install the rings correctly - Notice the "N" is the tops of the rings

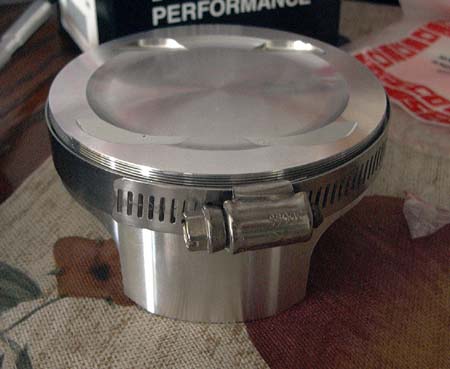

I used Stainless radiator clamps to hold the rings in like a ring compressor - cheap and slick

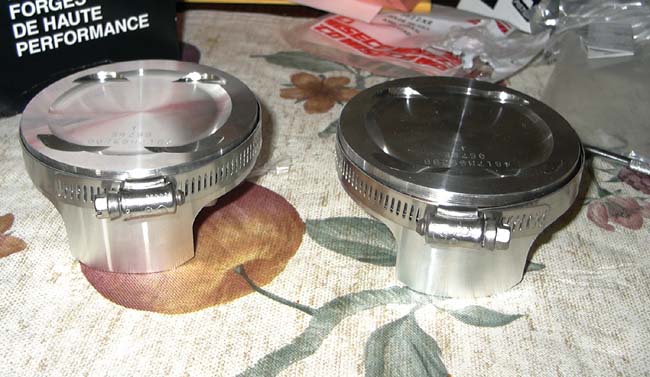

Here's both pistons ready to go back on the motor

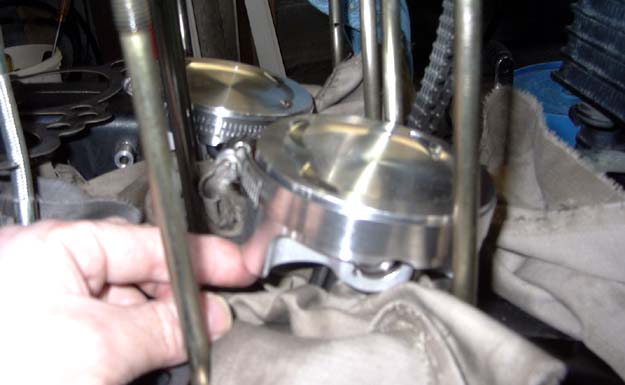

The grudgeon pins and circlips are installed and the pistons are back on the connecting rods
Here's the pistons all assembled and ready to get lined up. Use lots of Oil!

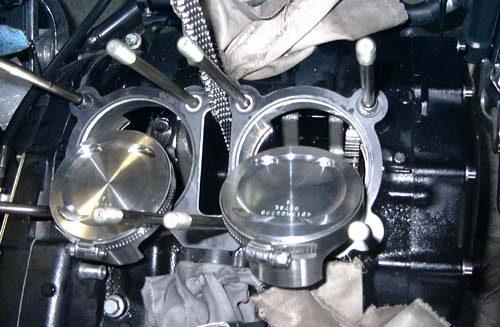

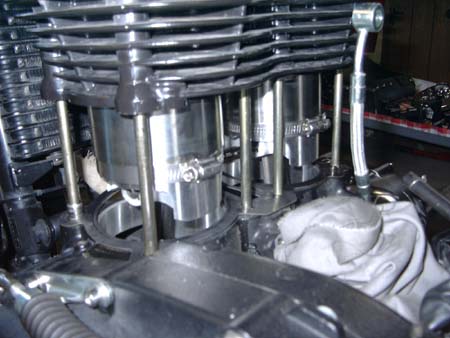

Got them all lined up and ready to push back down - be sure to have gasket on correctly and push evenly.

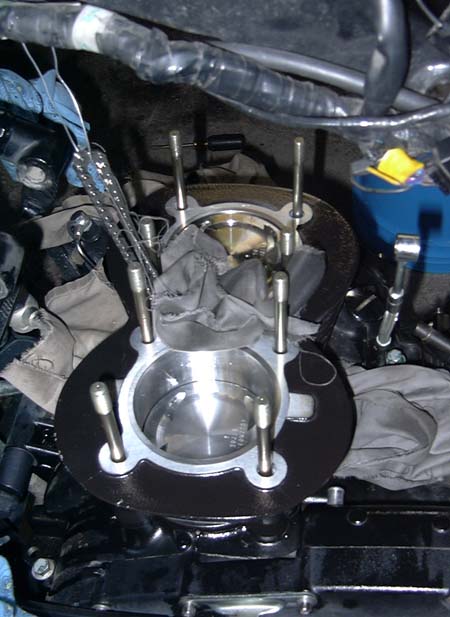

Barrels and pistons all back on - GET HELP! It was a lot easier with 4 hands.

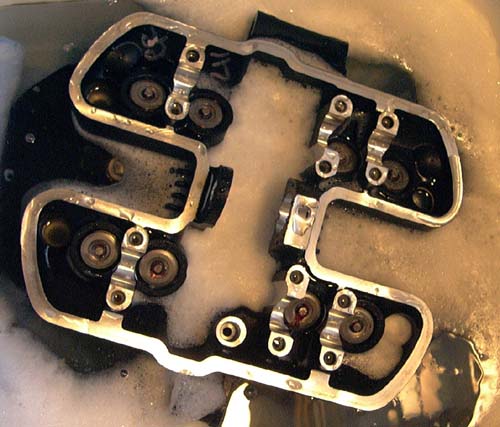

Cylinder Head in wash basin cleaning port job fine pieces off

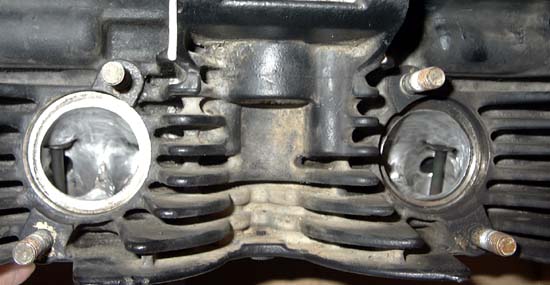

Exhaust ports after port job

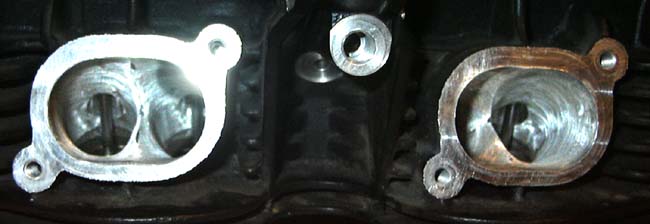

Intake ports after port job

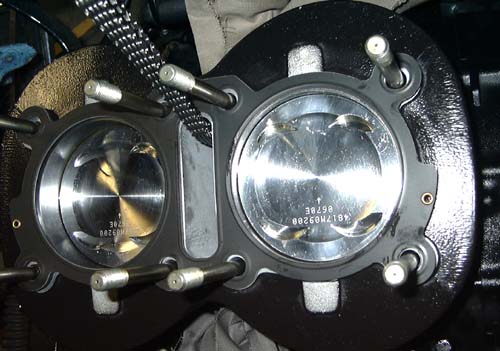

Align the head gasket and locating dowels

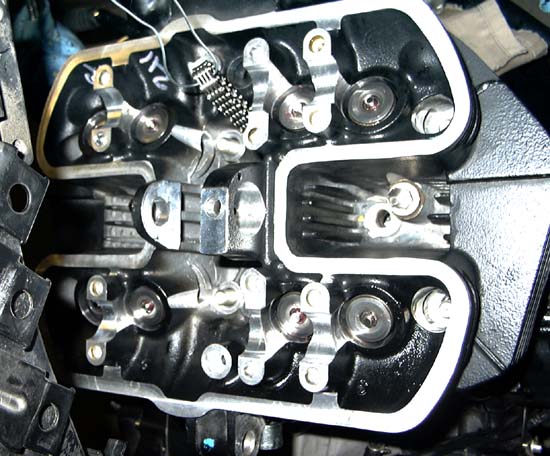

Cylinder head back on and ready to bolt down
